Overview

This API lets you send UPI payment collection requests on a given upi_id

Problem

The requirement to easily add funds to a virtual bank account.

Solution

API to send the UPI payment collection request.
Get postback on when the account is topped-up.

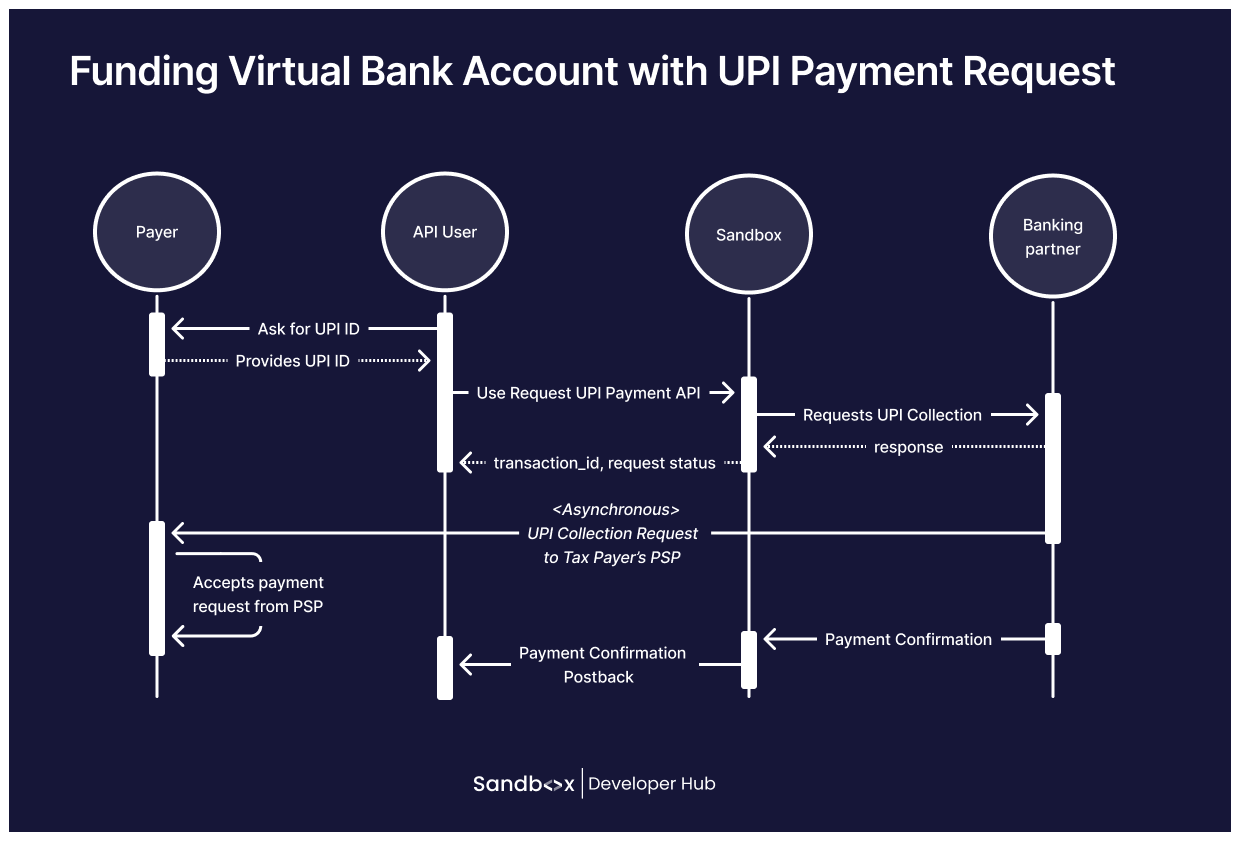

Sequence Diagram

Endpoint

HTTP Method	Resource
`POST`	/tax-payment/accounts/{account_number}/upi/collect

Request

Follow the below guidelines to pass the account number in the path parameter and payment in the body.

Path Parameter

Param	Type	Description	Example
account_number	`string`	Virtual bank account number from which you want to add funds to.	HEY564578321596

Body

This API takes Payment Entity where the payer and amount parameters are mandatory.

Sample CURL Request.

curl --request POST \
     --url https://api.sandbox.co.in/tax-payment/accounts/xxxxxxxxxxxxxx/upi/collect \
     --header 'Accept: application/json' \
     --header 'Authorization: xxxxxxxxxxx' \
     --header 'Content-Type: application/json' \
     --header 'x-api-key: xxxxxxxxxxxxxxx' \
     --data '
{
  "@entity": "payment",
  "payer": {
    "@entity": "payer",
    "name":"John Doe",
        "upi_id": "jon*******@upi"
  },
  "payment_details": {
    "@entity": "payment_details",
    "description": "Payment Request For Order 12345678 ",
    "notes": {},
  },
  "amount": 600
}
'

❗️
Test Environment Not Available

Response

The API will respond with the Payment Entity

{
  "code": 200,
  "timestamp": 1631095323168,
  "transaction_id": "8831d466-6fe7-48ed-b478-7d1cb4e92572",
  "data": {
    "@entity": "payment",
    "payer": {
      "@entity": "payer",
      "name": "John Doe",
      "upi_id": "john*******@upi"
    },
    "payee": {
      "@entity": "payee",
      "bank_account": {
        "@entity": "virtual_bank_account",
        "account_number": "HEYSBX0****01",
        "status": "Active",
        "IFSC_no": "ICIC***25"
      }
    },
    "payment_details": {
      "@entity": "payment_details",
      "transaction_id": "58sdKG-12e4-5d58-8c4s5654sw6898",
      "status": "pending",
      "bank_transaction_id": null,
      "description": "Test Transaction",
      "notes": {}
    },
    "status": "Pending",
    "amount": 600,
    "created_at": 16373968890
  }
}

Response Caching

Response caching is not available for this API. Learn more about our response caching mechanism here

Wallet Charges

Since Request UPI Payment API is a Paid API, a wallet charge will take place.

Versioning

This API is currently in major version 1.0. Refer to our versioning policies here
